INFINITY Modular
Storage System Specifications

The Lawson Automotive INFINITY Modular Storage System
is a vehicle-specific storage platform designed for touring vehicles and work wagons.

Unlike traditional fixed drawer systems, INFINITY uses a modular component design that allows storage modules to be installed, removed or reconfigured depending on how the vehicle is used.

The system forms a strong, flat storage platform while allowing drawers, slide systems and accessory modules to be installed
as required.

INFINITY systems are available for:

• Toyota Prado 250
• Toyota LandCruiser 300
• Toyota LandCruiser 200
• Ford Everest
• Isuzu MU-X

INFINITY False Floor

  • The INFINITY False Floor System forms the structural foundation of the Lawson Automotive INFINITY modular storage system.

    The vehicle-specific floor platform creates a strong, flat storage deck across the rear cargo area while supporting modular storage components including drawers, slide systems and accessory modules.

    The floor integrates cleanly with the vehicle interior and includes lift-out access panels allowing access to storage space beneath the platform.

    Once installed, the floor platform allows INFINITY modules to be installed or removed depending on the storage configuration required.

  • • Vehicle-specific floor design engineered for each supported platform
    • Creates a strong flat cargo deck suitable for modular storage components
    • Designed to support drawers, slide modules and accessory storage systems
    • Large lift-out access panels allow access to storage beneath the floor
    • Two access panels are included on most vehicles
    • Prado 250 system includes a single access panel due to the hybrid battery location

  • • Precision CNC cut structural floor panels
    • Automotive grade carpet finish
    • Reinforced mounting structure
    • Modular panel construction
    • Upper deck panels are bolted rather than screwed, providing improved strength and serviceability

  • Toyota Prado 250
    Platform Length: approx 1050 mm
    Platform Width: approx 1100 mm
    Platform Height: approx 90 mm
    Floor Weight: approx 19 kg

    Toyota LandCruiser 300
    Platform Length: approx 1100 mm
    Platform Width: approx 1150 mm
    Platform Height: approx 90 mm
    Floor Weight: approx 21 kg

    Ford Everest
    Platform Length: approx 1050 mm
    Platform Width: approx 1100 mm
    Platform Height: approx 90 mm
    Floor Weight: approx 19 kg

    Isuzu MU-X
    Platform Length: approx 1050 mm
    Platform Width: approx 1100 mm
    Platform Height: approx 90 mm
    Floor Weight: approx 19 kg

    Specifications may vary slightly depending on vehicle configuration.

INFINITY High Deck Slide Module

  • The INFINITY High Deck Slide Module provides a heavy-duty slide platform designed to support portable fridges, storage boxes and touring equipment.

    The module integrates directly with the INFINITY false floor platform while maintaining the modular architecture of the system.

    Positioned above the main floor deck, the High Deck Slide allows large items such as fridges to be accessed easily while maintaining organised storage within the vehicle.

    The module also integrates power management and additional storage features, making it one of the most versatile components within the INFINITY system.

  • • One of the most popular INFINITY modules for touring vehicles
    • Available in three widths to suit different vehicle setups
    • Integrated fridge power management through the Cable Caddy system
    • Anderson power connections integrated into the Cable Caddy
    • Slim storage drawer beneath the slide deck for additional storage
    • Removable preparation table included for touring setups
    • Fridge tie-down mounts supplied with mounting screws to suit the footprint of your fridge

  • • Precision CNC cut structural slide platform panels
    • Automotive grade carpet finish
    • Heavy duty slide runner mechanism rated to 247 kg
    • Over-engineered slide design for touring applications
    • Integrated fridge cable caddy power management system
    • Anderson power connections integrated into the Cable Caddy
    • Slim storage drawer integrated beneath the slide deck
    • Removable preparation table included

  • 40% Width High Deck Slide Module

    Slide Deck Size: 385 mm × 990 mm
    Deck Height Above Floor Base: 120 mm

    Module Size: 385 mm × 1000 mm

    Slide Extension: 900 mm

    Slim Storage Drawer: 35 mm × 300 mm × 580 mm

    Slide Rating: 247 kg

    Module Weight: 18 kg

    50% Width High Deck Slide Module

    Slide Deck Size: 485 mm × 990 mm
    Deck Height Above Floor Base: 120 mm

    Module Size: 485 mm × 1000 mm

    Slide Extension: 900 mm

    Slim Storage Drawer: 35 mm × 300 mm × 580 mm

    Slide Rating: 247 kg

    Module Weight: 20 kg

    60% Width High Deck Slide Module

    Slide Deck Size: 585 mm × 990 mm
    Deck Height Above Floor Base: 120 mm

    Module Size: 585 mm × 1000 mm

    Slide Extension: 900 mm

    Slim Storage Drawer: 35 mm × 300 mm × 580 mm

    Slide Rating: 247 kg

    Module Weight: 22 kg

    All dimensions and weights are approximate and may vary slightly depending on vehicle platform and configuration.

INFINITY Base Drawer Module

  • The INFINITY Base Drawer Module provides organised storage beneath the INFINITY floor platform while maintaining a strong flat load surface above.

    The drawer system is designed for touring equipment, recovery gear, tools and general vehicle storage while keeping items secure and easily accessible.

    Because the system is modular, base drawers can be installed, removed or combined with other INFINITY modules depending on how the vehicle is used.

  • • Designed to integrate with the INFINITY false floor platform
    • Maintains a flat cargo deck above the drawer system
    • Compatible with Stack Drawer and High Deck Slide modules
    • Ideal for touring equipment, recovery gear and vehicle storage
    • Drawer includes two removable repositionable internal dividers

  • • Precision CNC cut structural drawer panels
    • Automotive carpet finish
    • Stainless sealed bearing runner system
    • Heavy duty compression locking handle
    • Modular removable drawer design
    • Two removable repositionable internal drawer dividers supplied

  • 40% Width Module

    Module Size: 385 mm × 1000 mm
    Drawer Internal Size: 335 mm × 940 mm

    Drawer Height: 250 mm

    Module Weight: 21 kg

    50% Width Module

    Module Size: 485 mm × 1000 mm
    Drawer Internal Size: 435 mm × 940 mm

    Drawer Height: 250 mm

    Module Weight: 23 kg

    60% Width Module

    Module Size: 585 mm × 1000 mm
    Drawer Internal Size: 535 mm × 940 mm

    Drawer Height: 250 mm

    Module Weight: 25 kg

    Drawer includes two removable repositionable internal dividers.

    All dimensions and weights are approximate and may vary slightly depending on vehicle platform and configuration.

INFINITY Stacked Drawer Module

  • The INFINITY Stack Drawer Module provides an additional layer of modular storage above the Base Drawer Module within the INFINITY storage system.

    The module installs directly above the base drawer position and allows additional storage capacity to be added without permanently altering the system layout.

    Because the INFINITY system is modular, stack drawers can be installed or removed depending on how the vehicle is configured for touring or general storage.

    This allows users to increase storage capacity when required while maintaining flexibility within the storage system.

  • • Designed to mount directly above the INFINITY Base Drawer Module
    • Adds a second level of organised storage within the system
    • Can be installed or removed depending on storage requirements
    • Maintains modular flexibility within the INFINITY system
    • Drawer includes two removable repositionable internal dividers

  • • Precision CNC cut structural drawer panels
    • Automotive grade carpet finish
    • Stainless sealed bearing runner system
    • Modular removable drawer design
    • Two removable repositionable internal drawer dividers supplied

  • 40% Width Stacked Drawer Module

    Module Size: 385 mm × 900 mm
    Drawer Internal Size: 335 mm × 840 mm

    Drawer Height: 250 mm

    Module Weight: 20 kg

    50% Width Stacked Drawer Module

    Module Size: 485 mm × 900 mm
    Drawer Internal Size: 435 mm × 840 mm

    Drawer Height: 250 mm

    Module Weight: 22 kg

    60% Width Stacked Drawer Module

    Module Size: 585 mm × 900 mm
    Drawer Internal Size: 535 mm × 840 mm

    Drawer Height: 250 mm

    Module Weight: 24 kg

    Drawer includes two removable repositionable internal dividers.

    All dimensions and weights are approximate and may vary slightly depending on vehicle platform and configuration.

INFINITY Wing Storage Modules

  • INFINITY Wing Storage Modules fill the side spaces between the main storage system and the interior panels of the vehicle.

    These areas are normally unused in traditional drawer systems but can provide valuable additional storage for touring equipment and vehicle accessories.

    Each wing module is designed specifically for the vehicle platform to follow the contours of the cargo area interior panels while maintaining a clean factory-style finish.

    Wing storage integrates directly with the INFINITY floor system and provides quick access to additional storage areas through lift-out access lids.

  • • Designed to utilise the unused space beside the main storage system
    • Vehicle-specific design to match the interior panels of each vehicle
    • Automotive carpet finish to match the INFINITY storage system
    • Lift-out access panels allow quick access to wing storage areas
    • Ideal for recovery gear, tools and touring accessories
    • Wing storage areas are intended for general equipment rather than electrical components such as batteries, compressors or inverters

  • • Precision CNC cut structural panels
    • Automotive grade carpet finish
    • Vehicle-specific internal support structure
    • Modular design integrated with the INFINITY floor platform
    • Lift-out access lids for quick storage access
    • Panels are bolted to the floor system for strength and serviceability

  • Wing storage modules are vehicle specific and designed to follow the contours of the cargo area interior panels.

    Internal storage size varies depending on the vehicle model and interior trim design.

    Typical module weights:

    Toyota Prado 250

    Left Wing Module Weight: 4.5 kg
    Right Wing Module Weight: 4.5 kg

    Toyota LandCruiser 300

    Left Wing Module Weight: 5 kg
    Right Wing Module Weight: 5 kg

    Ford Everest

    Left Wing Module Weight: 4.5 kg
    Right Wing Module Weight: 4.5 kg

    Isuzu MU-X

    Left Wing Module Weight: 4 kg
    Right Wing Module Weight: 4 kg

    Specifications may vary slightly depending on vehicle configuration.

INFINITY Drop-In Lid

  • The INFINITY Drop-In Lid provides a removable flat deck panel designed to sit over the High Deck Slide module when a fridge or slide-mounted equipment is not installed.

    The lid drops into position on the slide deck and restores a flat cargo platform within the vehicle, allowing the storage area to be used for luggage, cargo or general equipment.

    This allows the vehicle to easily transition between a touring setup with a fridge installed and a general cargo configuration when the fridge is removed.

  • • Designed to drop directly onto the INFINITY High Deck Slide module
    • Restores a flat cargo deck when the fridge or slide equipment is removed
    • Allows the vehicle to transition between touring and general cargo use
    • Quick to install or remove without tools
    • Carpet finish matches the INFINITY storage system

  • • Precision CNC cut structural panel
    • Automotive grade carpet finish
    • Designed to locate securely on the High Deck Slide module
    • Lightweight removable panel construction

  • Drop-In Lid sizes match the width of the High Deck Slide module.

    Available lid sizes:

    40% Width Slide Lid

    Panel Size: 385 mm × 1000 mm
    Module Weight: 5 kg

    50% Width Slide Lid

    Panel Size: 485 mm × 1000 mm
    Module Weight: 5.5 kg

    60% Width Slide Lid

    Panel Size: 585 mm × 1000 mm
    Module Weight: 6 kg

    Specifications may vary slightly depending on vehicle configuration.

INFINITY Battery Deck

  • The INFINITY Battery Deck provides a dedicated mounting platform for auxiliary battery systems within the INFINITY modular storage system.

    The platform integrates with the INFINITY floor system and allows electrical components such as lithium batteries and power management systems to be securely mounted within the vehicle.

    Preset mounting points are incorporated into the deck to suit Lawson Automotive PowerDeck Portable battery mounting trays, allowing battery systems to be installed quickly while maintaining a clean and organised layout.

    This approach keeps electrical equipment protected while maintaining the modular flexibility of the INFINITY storage system.

  • • Designed to integrate with the INFINITY false floor platform
    • Provides a dedicated location for auxiliary battery systems
    • Preset mounting points suit Lawson Automotive PowerDeck Portable battery mounting trays
    • Suitable for lithium battery installations and touring electrical systems
    • Maintains service access to battery and electrical components

  • • Precision CNC cut structural platform panel
    • Automotive grade carpet finish
    • Reinforced battery mounting structure
    • Preset mounting locations for PowerDeck Portable battery mounting trays
    • Modular design integrated with the INFINITY floor system

  • Battery Deck size varies depending on the vehicle platform and storage configuration.

    Typical platform size:

    Platform Size: 450 mm × 420 mm

    Module Weight: 1 kg

    Designed to support common slim auxiliary battery formats and portable battery systems.

    Specifications may vary depending on vehicle platform.configuration.

INFINITY Fridge Hutch

  • The INFINITY Fridge Hutch provides a structured enclosure around the fridge slide area, creating additional storage space while securing the fridge within the INFINITY modular system.

    Each hutch is built to suit the intended fridge model, allowing the available space around the fridge to be maximised for additional storage.

    By tailoring the hutch to the fridge footprint, the system provides a clean integrated layout while ensuring ventilation and access are maintained for the fridge during operation.

    The hutch integrates with the INFINITY High Deck Slide and floor platform to form a practical touring storage station within the vehicle.

  • • Available in 40%, 50% and 60% module widths
    • Hutch dimensions are customised to suit the fridge model being installed
    • We will contact you prior to manufacturing to confirm the intended fridge make and model
    • Designed to maximise usable storage space around the fridge
    • Built-in ventilation allows proper airflow around the fridge
    • Integrated battery deck included within the hutch structure
    • Battery deck can be removed if additional space is required for larger fridge models

  • • Precision CNC cut structural panels
    • Automotive grade carpet finish
    • Vehicle-specific structural mounting design
    • Integrated ventilation openings for fridge airflow
    • Modular design compatible with the INFINITY High Deck Slide
    • Integrated removable battery deck platform

  • Hutch dimensions vary depending on the fridge model being installed and the selected module width.

    Available module widths:

    40% Width Module
    50% Width Module
    60% Width Module

    Each hutch is built to suit the footprint of the intended fridge, allowing storage areas around the fridge to be maximised.

    Typical module weight:

    Module Weight: 7–9 kg depending on width configuration.

    Specifications may vary depending on vehicle platform and fridge model.

Weight Considerations for Touring Setups

Many touring vehicles used for long-distance travel and caravan towing operate close to their Gross Vehicle Mass (GVM).

INFINITY systems are often installed in vehicles where the factory rear seating has been removed
to create a practical touring storage platform.

The examples below show the typical progression from factory seating to a fully installed INFINITY touring system.

Factory Rear Seating Installed

Many touring vehicle owners choose to remove the third row seating to create additional cargo space for storage systems and touring equipment.

Removing the third row seats is a reversible modification, meaning the seats can be reinstalled at any time if required. Because the change is not permanent, this approach is commonly used in touring vehicles and commercial fleets and is permissible in most Australian states and territories.

Many government and emergency service vehicles across Australia operate with the third row seating removed to allow space for specialised equipment and storage systems.

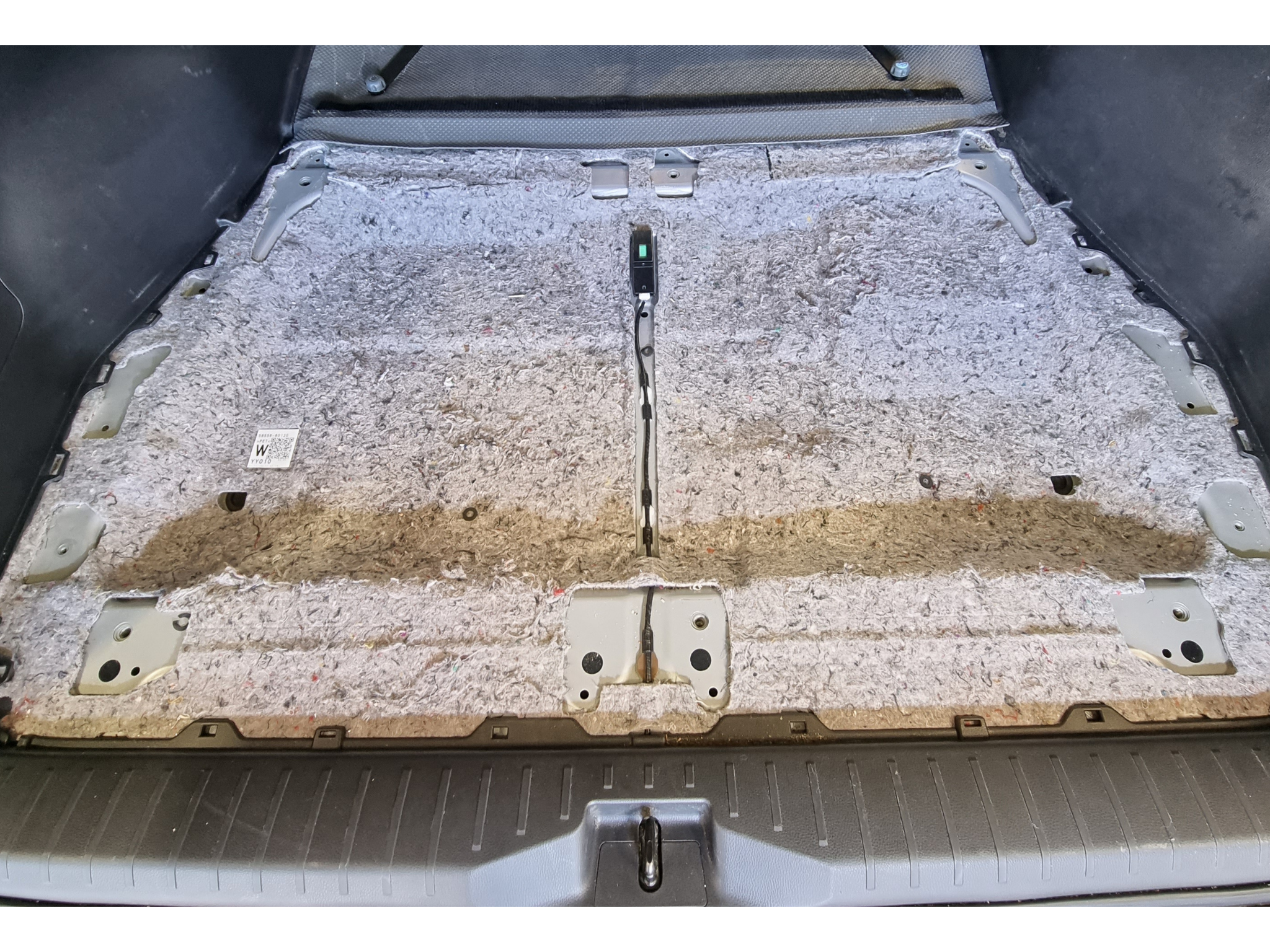

Rear Seats Removed

Removing the factory third row seating frees up valuable cargo space and reduces vehicle weight, creating a practical foundation for a touring storage system.

Typical third row seat assembly weight:

Toyota Prado 250 - Approx 28 kg

Toyota LandCruiser 300 - Approx 30kg

Ford Everest - Approx 26kg

Isuzu MU-X - Approx 24kg

Removing the rear seating creates additional cargo space while offsetting a portion of the weight added by touring storage systems.

INFINITY Storage System Installed

Replacing the factory seating with an INFINITY modular storage system provides organised storage while maintaining a sensible vehicle weight for touring setups.

Typical INFINITY Signature System weight above factory seating:

Toyota Prado 250 + 25kg (7 Seat)
Toyota Prado 250 + 32kg (5 Seat)

Toyota LandCruiser 300 + 50kg (7 Seat)
Toyota LandCruiser 300 + 50kg (5 Seat)

Ford Everest + 46kg

Isuzu MU-X + 45kg

The overall weight increase compared to the removed seating is modest while providing dramatically improved storage functionality.
